AI policy plane (CEL)

Evaluate gateway-computed ai.* signals with CEL and return typed actions for guardrails, budgets, and routing

The AI policy plane is one sandboxed CEL expression that expresses cross-cutting rules over the AI decision pipeline. Instead of spreading a decision across the guardrail, budget, routing, and logging config blocks, you write a single expression over the signals the gateway already computes and emit a small, closed set of typed actions.

The expression runs on the same sandboxed CEL engine as the rest of sbproxy, at line rate, and can only emit actions from a fixed set. There is no arbitrary code path. A policy can reroute, select a route-local compression pipeline, redact, block, tag, or audit, and nothing else.

Configuration

action:
  type: ai_proxy
  providers:
    - name: openai
      provider_type: openai
      api_key: ${OPENAI_API_KEY}
      default_model: gpt-4o-mini
      models: [gpt-4o, gpt-4o-mini]
  ai_policy:
    expression: |
      ai.tokens.input_est > 12000
        ? ["compression:compact", "route_to:gpt-4o-mini", "audit:high"]
        : ["allow"]
    on_error: allow
  compression:
    levers: []
    profiles:
      compact:
        levers:
          - type: window_fit
            input_budget_tokens: 8192

The expression returns either one action token (a string) or a list of tokens. on_error is the action applied when the expression fails to evaluate or returns an unrecognized value; it defaults to allow (fail-open), so a policy mistake degrades to current behavior rather than taking the gateway down.

The hook runs after guardrail evaluation and before provider selection. Default off: with no ai_policy block, the pipeline behaves exactly as before.

Actions

Token Effect
allow Proceed unchanged.
block Reject the request before dispatch with a 403.
redact Mask sensitive content in the prompt (via the origin's PII redactor) and continue.
route_to:<model> Force the request onto a specific model.
compression:<selector> Select on, off, or one declared route-local compression profile.
set_sink_tag:<tag> Tag the usage record (and the verifiable ledger entry) emitted for this request.
audit:<priority> Emit a structured audit event at the given priority.

The action set is closed: an unrecognized token at evaluation time falls back to on_error. The expression itself is compiled at config load, like every other CEL surface: a syntax error, or a reference to a binding outside the ai namespace, refuses the config at boot and reload rather than booting a proxy whose policy is silently absent.

Compression selectors use lowercase ASCII profile names of up to 64 bytes, with _ and - allowed after the first letter or digit. A malformed compression: selector is treated as an invalid operator choice and safely disables compression for that request. A valid name that is not declared on the route has the same safe-off behavior. Both cases emit the content-free ai_compression_selection event and increment sbproxy_ai_compression_selection_total with source="cel_policy", outcome="invalid_operator". They do not apply the policy-wide on_error, because that could enable a route default the operator did not select.

The full selector precedence is X-Compression header, governed key compression_profile, CEL, then the route default. A caller header therefore overrides a CEL decision. SBproxy strips that header before sending the request upstream. See AI context compression for the shared grammar and rejection rules.

The ai.* namespace

This vocabulary is engine-neutral: a multi-engine ai_routing_policy reads exactly these paths in Lua and JavaScript (as an ai global), in Rego (as input.ai), and in WebAssembly (as the ai field of the request envelope), kept identical by a parity test. See examples/ai-routing-policy/ for a complete working config that hands a routing decision to CEL this way. Coming from OPA and want the Rego side first: see opa-rego-policies.md.

Field Type Meaning
ai.surface string Classified surface (chat_completions, embeddings, ...).
ai.model string Requested / resolved model.
ai.provider string Leading routing candidate.
ai.principal.tenant string Tenant the request resolved to.
ai.principal.api_key_id string Authenticated key id.
ai.principal.tier string Principal risk tier (from the SB-Attr-Risk-Tier tag). Attribution tags are stamped on the governed-credential path, so the request must authenticate with a declared credential for the header to reach the policy; unkeyed requests have an empty tier.
ai.guardrails.flagged bool Whether any enforcing security guardrail flagged the request.
ai.guardrails.flagged_count int Number of enforcing security guardrails that flagged.
ai.guardrails.labels list Security verdict labels plus non-enforcing routing labels such as prompt classes.
ai.budget.fraction double Fraction of the tightest active budget window consumed.
ai.budget.exceeded bool Whether a budget window is already exceeded.
ai.tokens.input_est int Target-model input estimate for the current uncompressed JSON messages.
ai.prompt.difficulty double Heuristic prompt-difficulty in [0.0, 1.0], blending prompt length with code, math, and multi-step-reasoning signals; zero when the body carries no scorable text. This is the score the built-in cost_quality strategy routes on, so a routing policy can author that decision instead.
ai.prompt.fingerprint string Salted, non-reversible fingerprint of the prompt (pf_<12hex>), covering the model plus every message's role and content. Never embeds prompt text; empty when the body carries no messages. Useful for sticky / cache-affinity routing (route the same prompt shape to the same provider) without exposing the prompt. This is the pre-compression prompt: it uses the same pf_ scheme as the prompt_fingerprint on request-event envelopes, but that value is taken after compression, so do not join the two for a compressed request.
ai.providers list Per-provider live runtime state, index-aligned with the configured providers; each element is a map with the fields below. Read it with a comprehension, e.g. ai.providers.exists(p, p.healthy && p.latency_ms < 500). Empty when the request path gathered no router state.
ai.providers[i].name string Provider name (its stable id).
ai.providers[i].healthy bool false only when an active probe marked the provider unhealthy; a provider with no probe configured reads healthy (that axis abstains).
ai.providers[i].health string healthy, unhealthy, or unknown.
ai.providers[i].latency_ms double Observed p50 latency in milliseconds; 0 before the first observation.
ai.providers[i].in_flight int In-flight request count.
ai.providers[i].tokens_used int Tokens charged to the current minute.
ai.providers[i].circuit_open bool true when the circuit breaker is open (requests are being rejected).
ai.providers[i].circuit string closed, open, or half_open.
ai.catalog map Base data for the origin's declared models, keyed by the models strings verbatim (declare them in the casing callers use). Built once per config generation and rebuilt on reload, so it tracks model_prices and the rate card without the policy changing. A model with no known price or context window is omitted, and a provider that omits models contributes nothing (all providers deferring means an empty catalog and a load-time warning); guard with ai.model in ai.catalog.
ai.catalog[m].input_per_million double USD per million prompt tokens, the same unit model_prices is written in. Resolution order matches cost accounting: operator model_prices/rate card first, then the built-in catalog. Absent when no layer prices the model.
ai.catalog[m].output_per_million double USD per million completion tokens. Absent when no layer prices the model.
ai.catalog[m].context_window int Context window in tokens, from the built-in table. Absent when unknown.

ai.tokens.input_est is computed before CEL and before compression. Known OpenAI model families use their registered tokenizer; other model names use the documented UTF-8 byte-length heuristic. This makes an expression such as ai.tokens.input_est > 12000 ? "compression:compact" : "compression:off" depend on the caller's original context rather than a stale or post-compression accounting field.

The guardrail-verdict and budget-fraction dimensions are richest when the guardrail mesh and predictive budgets are configured, which produce the multi-verdict set and live burn rate the policy fuses.

Try it

The runnable example is in examples/ai-policy-cel/. Its provider points at a local OpenAI-shaped fixture that echoes the dispatched model back, so both branches of the policy are observable without a provider account:

cd examples/ai-policy-cel
docker compose up -d --wait

The example declares a demo-app credential because ai.principal.tier resolves from the request's attribution tags, and attribution is stamped on the governed-credential path: the SB-Attr-Risk-Tier header only reaches the policy on a request that authenticates with a declared credential. A free-tier request for the expensive model comes back rerouted:

curl -s http://127.0.0.1:8080/v1/chat/completions \
  -H 'Host: ai.local' -H 'Content-Type: application/json' \
  -H 'Authorization: Bearer sk-demo-app-key' \
  -H 'SB-Attr-Risk-Tier: free' \
  -d '{"model":"gpt-4o","messages":[{"role":"user","content":"Hi"}]}' \
  | jq -r '.model'

gpt-4o-mini

Any other tier takes the policy's else branch and keeps the requested model:

curl -s http://127.0.0.1:8080/v1/chat/completions \
  -H 'Host: ai.local' -H 'Content-Type: application/json' \
  -H 'Authorization: Bearer sk-demo-app-key' \
  -H 'SB-Attr-Risk-Tier: standard' \
  -d '{"model":"gpt-4o","messages":[{"role":"user","content":"Hi"}]}' \
  | jq -r '.model'

gpt-4o

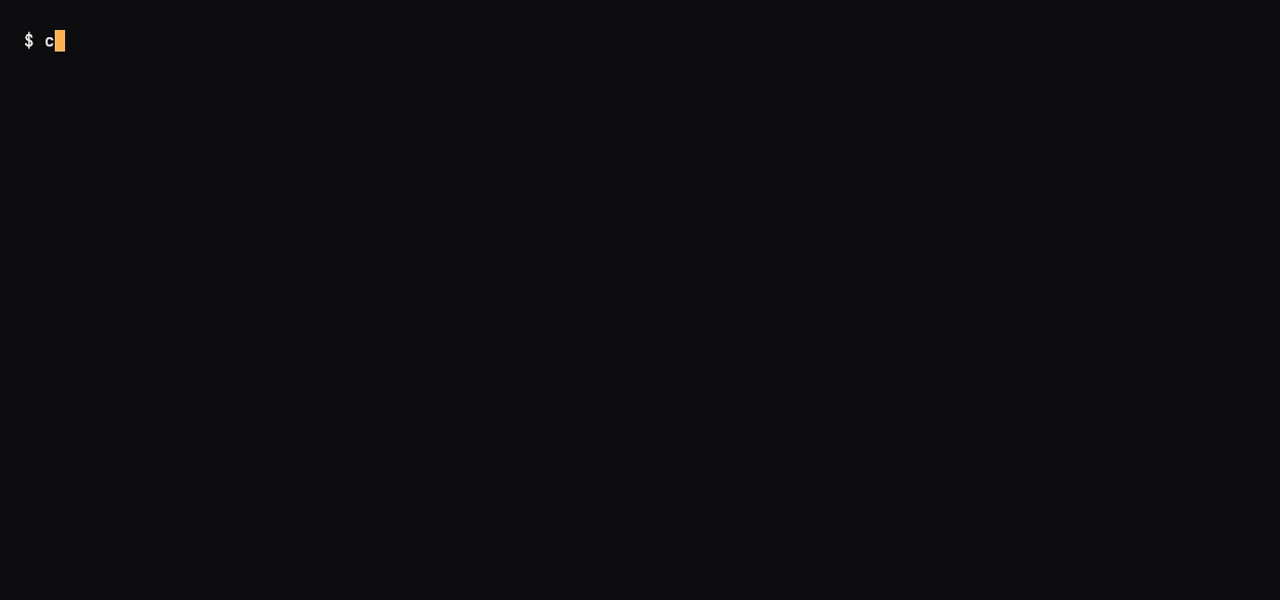

a request without a tenant header rejected 403, then an unlisted X-Tenant: stranger rejected before any provider call

A related recording shows CEL gating tenants at the network layer (config).
